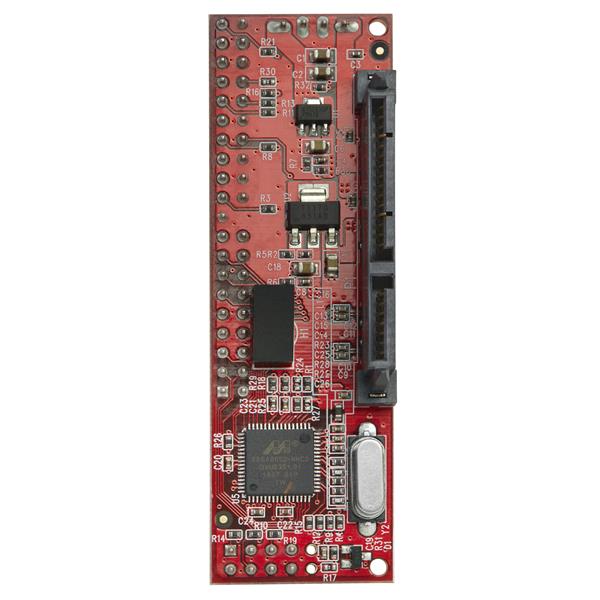

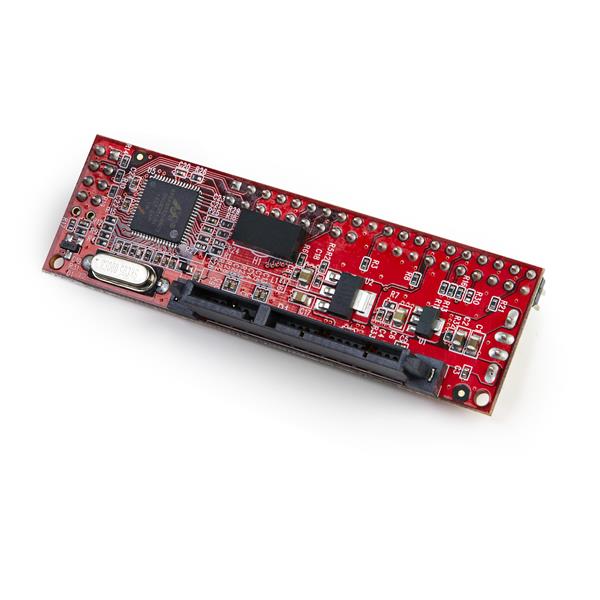

IDE to SATA Hard Drive or Optical Drive Adapter - 40-Pin PATA to 2.5" SATA HDD/SSD/ODD Converter
Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard
Features
Connect a SATA device to an IDE/ATA motherboard or controller card
Complete hardware solution; no software required
Support for 48-bit Logical Block Addressing (LBA)
Compliant with SATA revision 1.0 specification
Supports SATA I/II/III (1.5/3/6Gbps) drives
Compatible with Ultra ATA 133 specification
Supports 2.5", 3.5", and 5.25" SATA Drives
ODD (Optical Disk Drive) support, including Blu-ray, DVD, and CD-ROM drives
ID: IDE2SAT2
In stock:
?
USA:
1549 | Canada:
30
We will transfer stock to fulfill your order at no extra cost. If the quantity shown for our US warehouse isn’t enough to fulfill your order, we will transfer the required stock from our Canadian warehouse.
Same Day Shipping on in-stock items from USA if ordered by 5pm ET*
Reseller Pricing: Create an Account
Volume Order? Request a quote
The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
The StarTech.com Advantage
- Blu-ray, DVD and CD-ROM drive compatibility with ODD (Optical Disk Drive) support, from an IDE host connection
- Hassle-free installation, with no software CD required
- Backed by a StarTech.com 2 year warranty and free lifetime technical support
Common Customer Questions
No additional drivers or software required.
Applications
- An internal solution for connecting your SATA hard drive to a motherboard supporting an IDE interface
- Ideal for use with older motherboards that do not support SATA
Product Numbers
| TechData Dis | 11199814 |
| ASI Distribution USA | 141576 |
| D and H | IDE2SAT2 |
| Ingram Micro USA | RZ3115 |
| Synnex US | STA-IDE2SAT2 |
| UPC Code | 065030852258 |
| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Chipset ID | Marvell - 88SA8052 |
| Compatible Drive Types | SATA |
| Drive Size | 2.5in & 3.5in |
| Interface | IDE |
| Number of Drives | 1 |
| Performance | |
| Maximum Data Transfer Rate | 133MB/sec |
| RAID | No |
| Connector(s) | |
| Connector Type(s) | 1 - IDE (40 Pin, EIDE/PATA) |
| 1 - SATA Data & Power Combo (7+15 pin) | |
| 1 - SP4 (4 pin, Small Drive Power) | |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| System and Cable Requirements | An IDE controller and ATA cable (not included). |
| Environmental | |
| Humidity | 15~90% RH |
| Operating Temperature | 5°C to 50°C (40°F to 122°F) |
| Storage Temperature | -25°C to 80°C (-13°F to 176°F) |
| Physical Characteristics | |
| Enclosure Type | Steel and Plastic |
| Product Height | 0.9 in [23 mm] |
| Product Length | 3 in [75.5 mm] |
| Product Weight | 0.5 oz [15 g] |
| Product Width | 0.8 in [20 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 2.8 oz [80 g] |
| What's in the Box | |
| Included in Package | 1 - IDE to SATA adapter |
| 1 - LP4 Molex to SP4 Power Cable | |
| 1 - Instruction Manual | |
