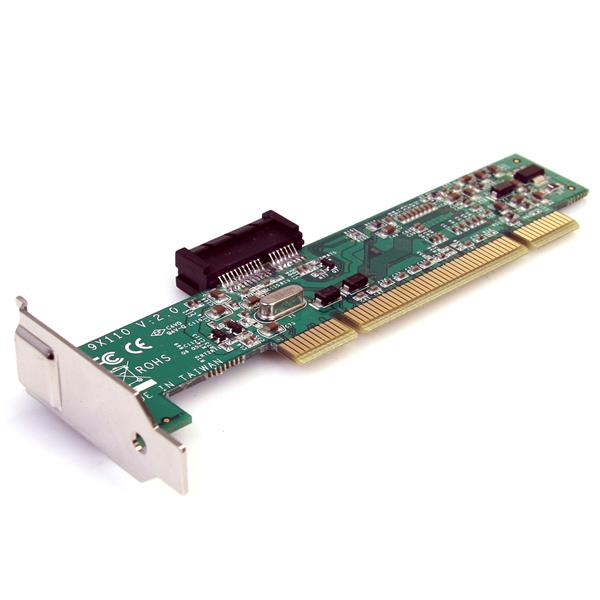

PCI to PCI Express Adapter Card
Install half-height/low profile x1 PCI Express interface cards in a standard PCI expansion slot
Product ID: PCI1PEX1

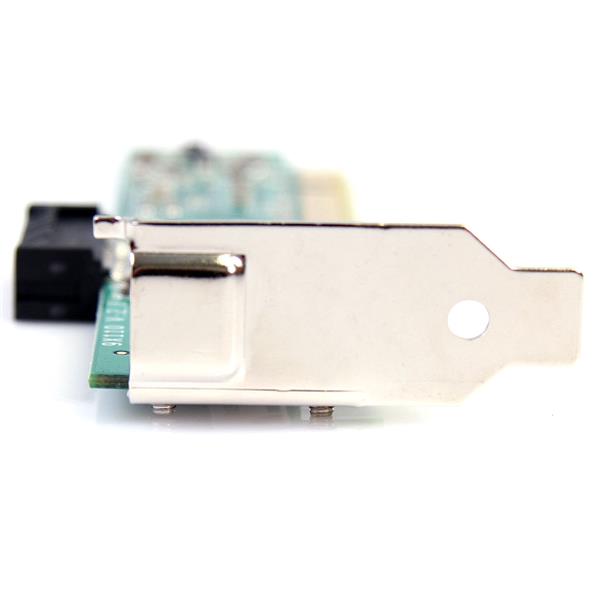

- Innovative bracket design adapts and secures the existing low profile/half-height bracket of the PCI Card
- PCI revision 2.3 compliant with up to 133MBps of available bandwidth
- Works with Universal Voltage PCI Slots (5V and 3.3V & 5V)
- Compliant with PCI-to-PCIe Bridge Architecture Spec Revision 1.2
- No driver or software installation
Same Day Shipping
on in-stock items from the UK if ordered by 2:00pm GMT*
Details
Volume Order?
Request a quote
Reseller Pricing:
Create an Account
Technical Specifications
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Bus Type | PCI / PCI-X (5 / 3.3V) | |
| Card Type | Standard Profile | |
| Chipset ID | Pericom - PI7C9X111SL | |
| Interface | PCI Express | |
| Ports | 1 | |
| Performance | ||
| MTBF | 139,125 hours | |
| Connector(s) | ||
| Connector Type(s) | 1 - PCI / PCI-X (Universal 3.3 & 5V, 32-bit) Male | |
| Internal Ports | 1 - PCI Express x1 Slot Female | |
| Software | ||
| OS Compatibility | OS Independent; No additional drivers or software required | |
| Environmental | ||
| Humidity | 0~95% RH | |
| Operating Temperature | 0°C to 85°C(32°F to 185°F) | |
| Storage Temperature | -10°C to 95°C(14°F to 203°F) | |
| Physical Characteristics | ||
| Product Height | 2 cm [0.8 in] | |
| Product Length | 13.5 cm [5.3 in] | |
| Product Width | 60 mm [2.4 in] | |
| Weight of Product | 32 g [1.1 oz] | |
| Packaging Information | ||
| Package Height | 33 mm [1.3 in] | |
| Package Length | 17.3 cm [6.8 in] | |
| Package Width | 14 cm [5.5 in] | |
| Shipping (Package) Weight | 102 g [3.6 oz] | |
| What's in the Box | ||
| Included in Package | 1 - PCI to PCIe Card | |
| 1 - Spare Full Profile Bracket | ||
| 1 - Instruction Manual | ||
Supports any operating system.
No additional drivers or software required.
No additional drivers or software required.
Certifications
Related Products
PEX1PCI1
PCI Express to PCI Adapter Card
Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot
£50.99 exc VAT
£61.19 inc VAT
157+ In stock
PEX2PCIE4L
PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length
Add two PCI and two PCI Express expansion card slots to your desktop computer
£449.99 exc VAT
£539.99 inc VAT
6+ In stock
PEX2PCI4
PCI Express to 4 Slot PCI Expansion System
Add four external PCI expansion card slots to a desktop computer
£374.99 exc VAT
£449.99 inc VAT
13+ In stock
PCI to PCI Express Adapter Card
1 out of 5 stars
Customer Reviews
(1 reviews)1 out of 5 stars
Tell us what you think of this product.
Need a little help getting started? Check out our review guidelines.
1 - 1 of 1 Reviews
Sort:
(1 star) Doesn't work with Windows 10
By: gene007
on 03/26/2020
Ordered one to put USB 3 card to 6 years old Lenovo workstation. I only had free old PCI slot, and there are no USB-3 controllers for PCI available. So I ordered this one. It simply doesn't work. PCI-Z test program, analysing PCI Bus, Stated this:
Bridge Pericom Semiconductor PI7C9X111SL PCIe-to-PCI Reversible Bridge PCI bridge This device cannot start. (Code 10) 12D8:E111 0000:0000 Need device installer. Can be rebalanced.
---- So, the card REQUIRES some sort of a driver.
Helpful?
Response from StarTech.com:
Matt, Customer Support on 3/26/2020 12:17:51 PMWe apologize for the difficulties you're experiencing with our PCI1PEX1. This adapter is native and does not require any drivers. However, you need to ensure that the drivers for your PC are fully updated for the operating system you're using or your PC may have difficulties recognizing the adapter and connected PCIe card properly. If you require any assistance we'd be happy to help look into this with you. You can contact us at www.startech.com/support where our Technical Advisors are available 24 hours a day, 5 days a week to provide support.
